Description

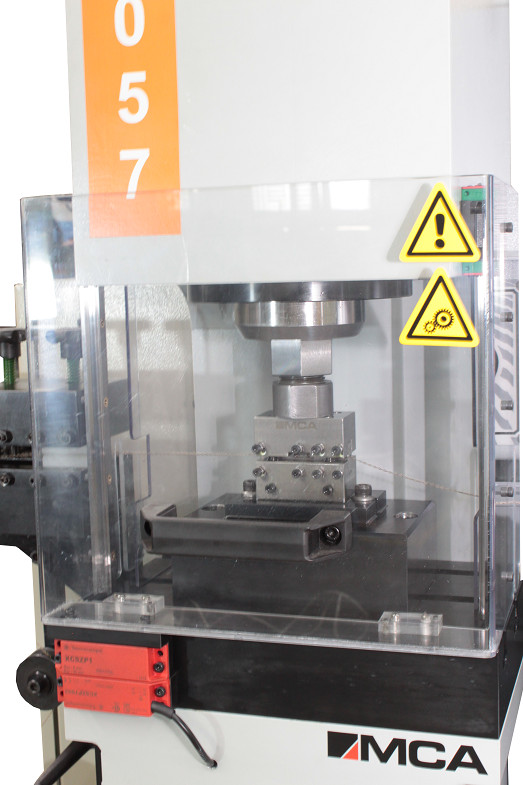

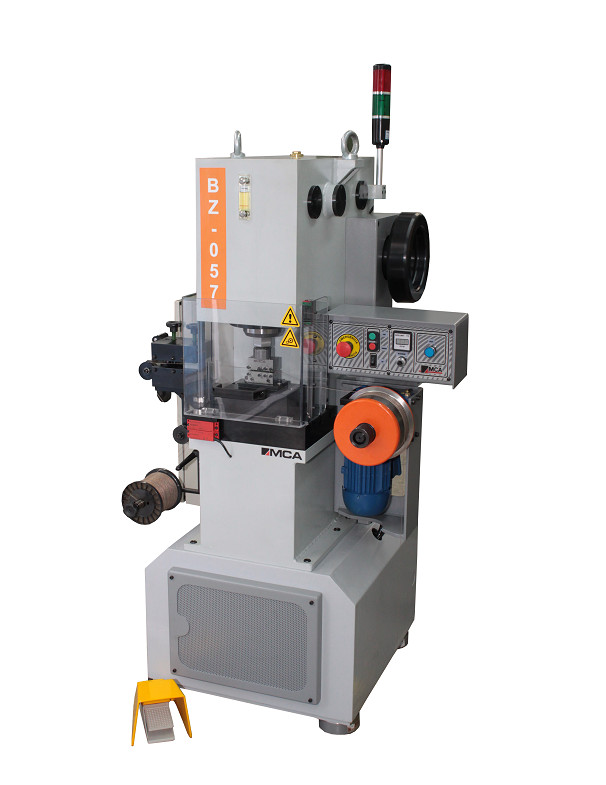

Specific machine for beat Curb (Groumet), Double Curb and Alternated Padlock.

Frame is made of nomalized cast iron with a conformation, that makes it a solid block, reinforced in the internal side. The machine produce low vibration rates and low noise due to the innovative mechanical transmission: shaft - piston. Chains tractions system equipped with sliding device through brake linnings.

Speed varies by means of a frequency inverter. It is provide with Electro-electronic command in 220V(monophase) and 380V (three-phase). It can beat chains with wire from Ø0.30  to 4.00 mm.

Technical Specifications

Motor: 5 CV (Three-phase)

Average Output: 1730 beats per minute (maximum)

Dimensions: 1585 x 880 x 750 mm

Net Weight: 950 kg
