Finishing Process

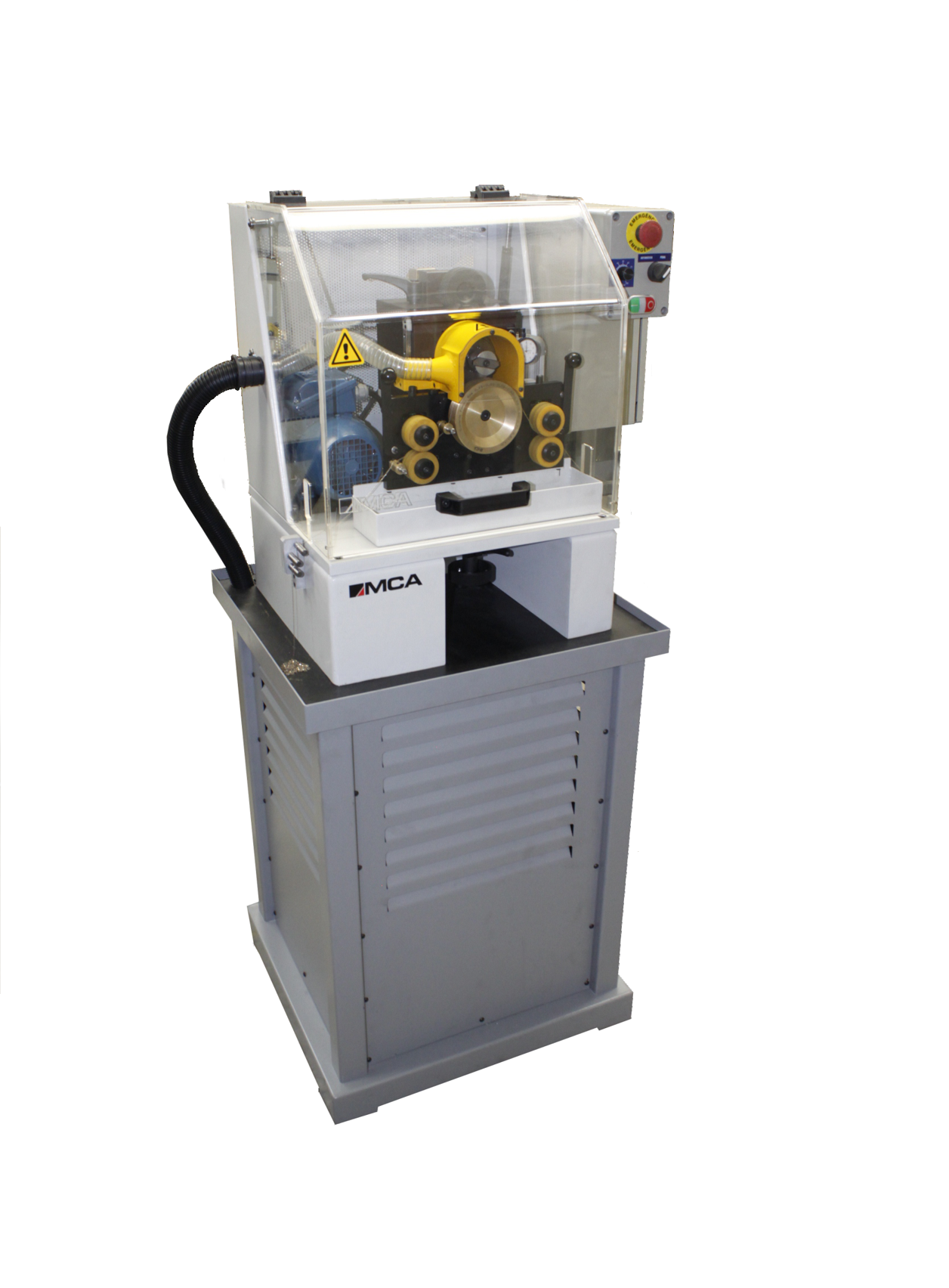

DIAMOND MILLING MACHINE - DCN066
Description
Specific machine for milling Curb (Groumet) or Padlock chain in non-ferrous metals, havin chain attachment adjustable to the size of the link, so its possible to fabricate up to 12 different models with the same tool.
Frame is made of nomalized cast iron and the other components are made of cemented, hardened and/or rectified steel.
Speed varies by means of a frequency invertes. It is provide with Electro-electronic command in 220V (monophase).
Technical Specifications
Power: 1/2 HP
Average Output: Up to 10m / minute
Tool: 4 mm cut
Net Weight: 210 kg
