Description

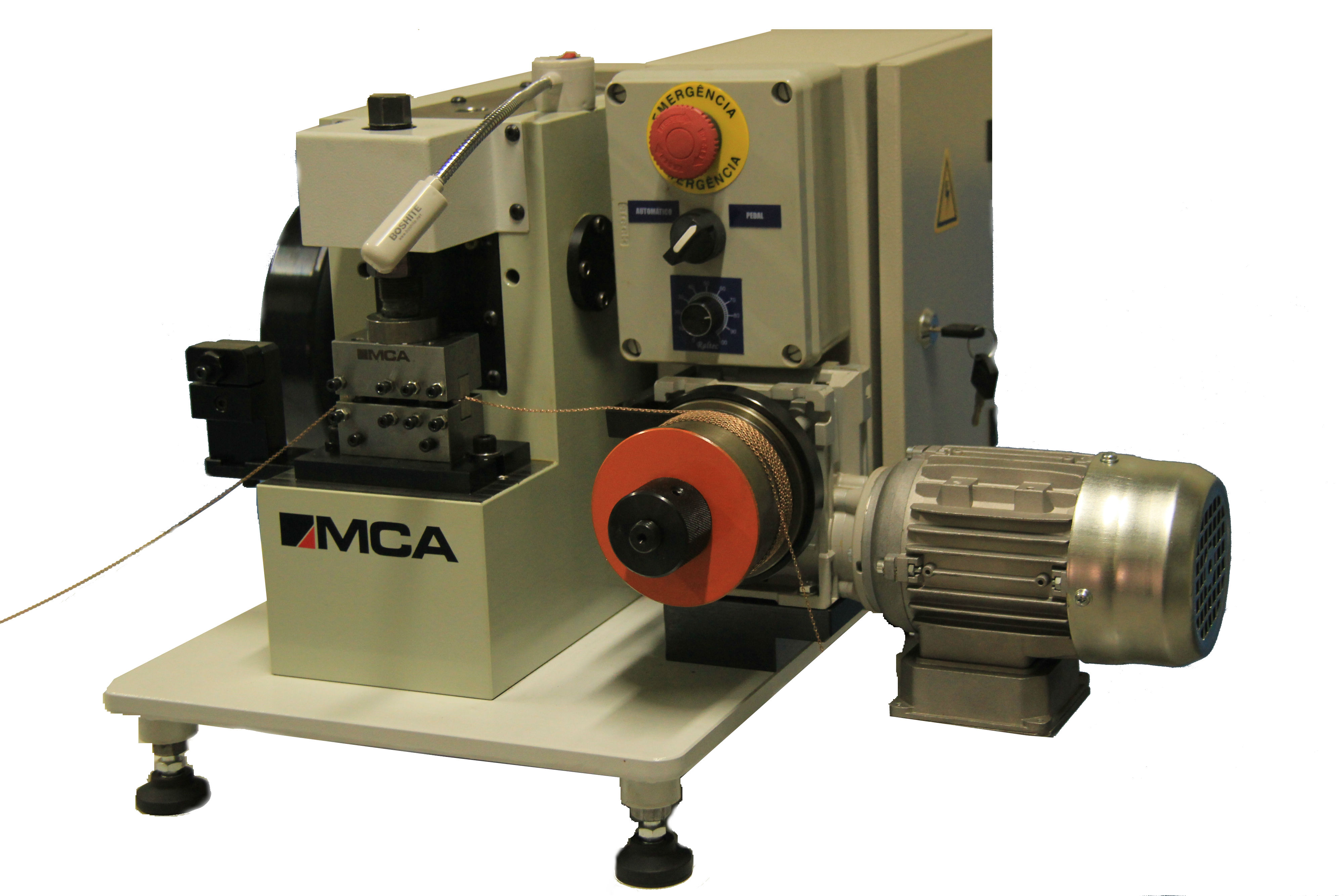

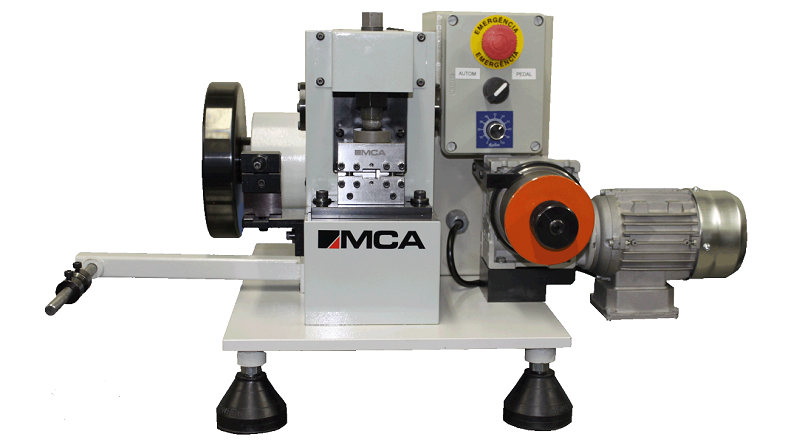

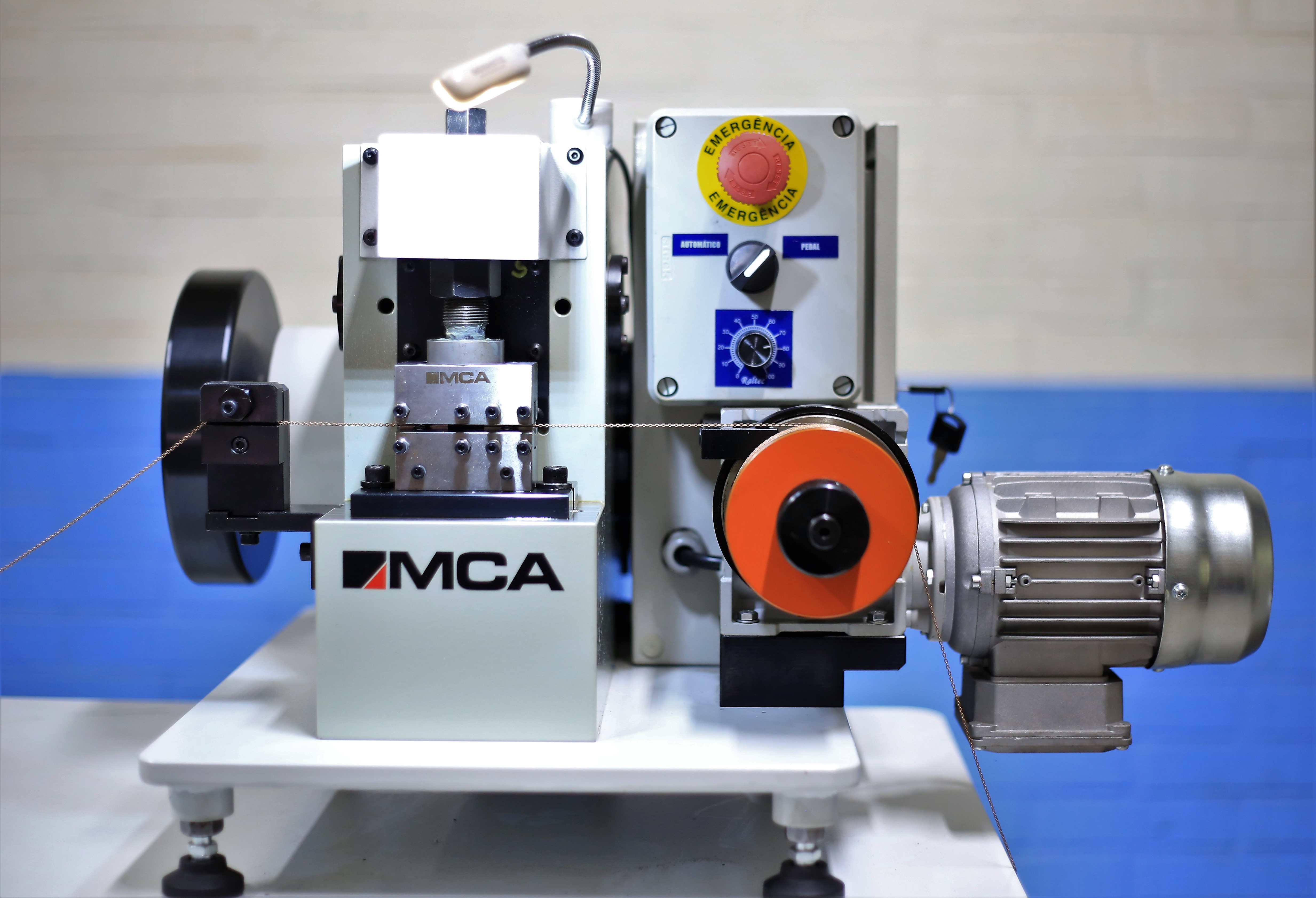

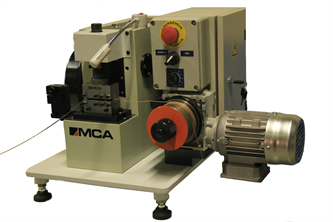

Specific machine for beat Curb (Groumet), Double Curb and Alternated Padlock.

Frame is made of nomalized cast iron with a conformation, that makes it a solid block, reinforced in the internal side. The machine produce low vibration rates and low noise due to the innovative mechanical transmission: shaft - piston. Chains tractions system equipped with sliding device through brake linnings.

Speed varies by means of a frequency inverter. It is provide with Electro-electronic command in 220V(monophase). It can beat chains with wire from Ø0.30  to 1.50 mm.

Technical Specifications

Motor: 1,5 CV (monophase)

Average Output: 1730 beats per minute (maximum)

Dimensions: 630 x 630 x 400 mm

Net Weight: 140 kg
