Description

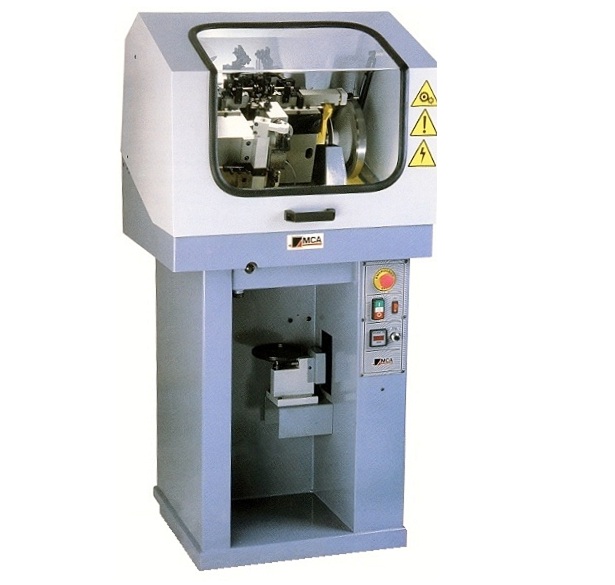

Specific machine for the manufacture of  Curb (Groumet) chains Alternated Padlock model. It may be used for the manufacture of Normal Curb Chains "only small links" or "only long links". Its structure is normalized cast iron.

Frame is made of nomalized cast iron and the other components are made of cemented, hardened and/or rectified steel. It has an automatic and forced lubrication system on the main wear points. Tool changes are simplified by standardization and retification of tool fittings. Tools can be made of hard metal or hardened steel.

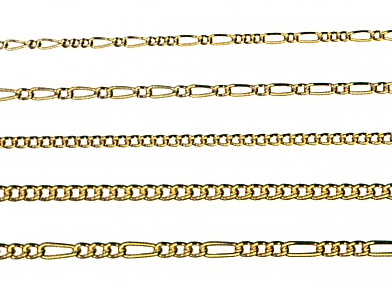

Alternations can be made in the following options: 1x1, 2x1, 3x1 5x1, 11x1, 2x2, 4x2, 3x3, 6x3, 9x3, etc. or irregular sequences such as: 3x1x1x1, 9x1x1x1.

Speed varies by means of a frequency inverter. It is provide with Electro-electronic command in 220V(monophase) and 380V (three-phase) with safety system for automatic stop in case of irregularity in the link manufacture.

Technical Specifications

Wire gauge: Ø 0.45 to 1.00 mm

Average Output: up to 115 links per minute

Dimensions: 4650 x 1520 x 650 mm

Net weight: 210 kg
