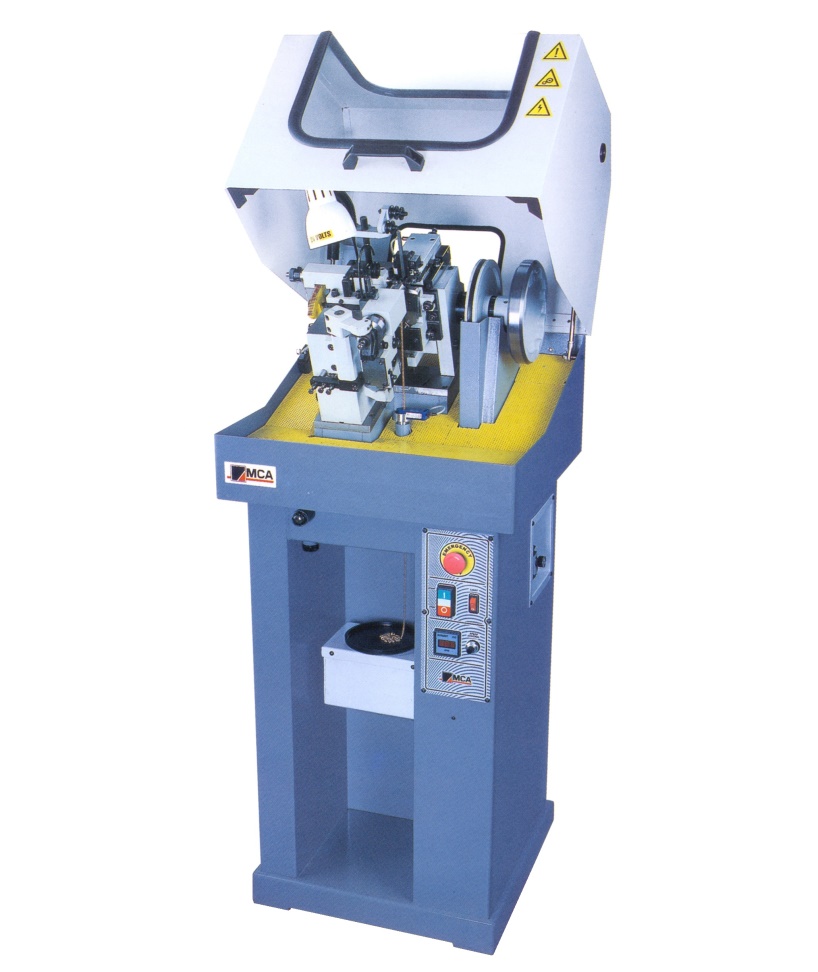

MEDIUM SIZE ROBOT MODEL– RMN007
Description
Specific machine for the manufacture of metal chains such as Curb (Groumet) or Padlock.
Frame is made of nomalized cast iron and the other components are made of cemented, hardened and/or rectified steel. It has an automatic and forced lubrication system on the wear points. Tool changes are simplified by standardization and retification of tool fittings. Tools can be made of hard metal or hardened steel.
Speed varies by means of a frequency inverter. It is provide with Electro-electronic command in 220V(monophase) and 380V (three-phase) with safety system for automatic stop in case of irregularity in the link manufacture.
Technical Specifications
Wire Gauge: 0.40 to 1.00 mm
Average Output: up to 160 links per minute
Dimensions: 570 x 1500 x 610 mm
Net Weight: 190 kg
